FirstLight Ultra High Density Solution
Items 1-15 of 16
- 1u Sliding Storage/Management Tray
The 1U Sliding Management tray provides a versatile solution for managing both patch cords at the front of the rack and slack storage at the rear. The individual hooks can be placed as per the installer’s preference. The sliding slack storage at the rear provides support for incoming cables which caters for both High Density UltraSlim solutions and standard deeper sliding patch panels.Learn More
- 2x40G QSFP+ (MPO/MTP) to 8x10G SFP+ (16xLC) Transition Module
40G parallel optics transceivers like QSFP+ can support 4x10G modes– this feature allows new parallel optics active equipment being compatible with existing 10G transceivers.
2x40G QSFP+ (MPO/MTP®) to 8x10G SFP+ (16xLC) Transition Module provides interface between 2xQSFP+ (40G transceiver with MPO/MTP® interface) and 8xSFP+ devices (10G transceivers with LC(DX) Interface).Learn More
- Ultra High Density UltraSlimline Panel 1U 19″ MPO/MTP – Up to 144 Fibres
The FirstLight Ultra High Density (UHD) UltraSlimline Panel is specially designed to accommodate high density cabling in high end Data Centre and Telecommunication central office environment. The shallow depth of the FirstLight UHD UltraSlim Panel makes it suitable for low depth copper racking systems or Telecommunications ODFs.Learn More
- FirstLight Ultra High Density Solutions
The Ultra High Density 0U solution is designed to allow outside rack U space installation of UHD MPO/MTP, preterm or splice modules. The UHD 0U kit contains an assembled chassis accepting 1 x module, mounting plate and a set of installation screws.
The mounting plate can be installed in a variety of positions. 0U chassis are designed to be easily stacked together creating multiple modules outside rack chassis structures.Learn More
- FirstLight Ultra High Density Splice ModuleFirstLight Ultra High Density (UHD) System of 2U, 1U and 0U chassis is a platform offering modular splicing solution. UHD modules can feature special internal splice management housing conveniently up to 24 x splice positions. 2U rack space can contain up to 288 splice positions. Both LC (Up to 24 x ports per module) and SC (Up to 12 x ports per module) interfaces are provided. Learn More
- FirstLight Ultra High Density Pre-Terminated Module
FirstLight Ultra High Density Modules are the platform for hosting pre-terminated cable assemblies. Solution brings advantage of speed installation, improved power budget as well as improved economics vs traditional modular MPO/MTP systems.
Assemblies can be pre-installed inside modules in the factory and supplied to the installation site for instant deployment ready to operate. Alternatively if required pre-terminated cables can be fitted inside module post installation in the field.Learn More
- FirstLight Ultra High Density MPO/MTP Adaptor Module
MPO/MTP adaptor modules are used to interconnect MPO/MTP trunks, pigtails, patchcords or ruggedised MPO/MTP fanouts. MPO/MTP adaptor interface reduces rack space usage.
Substituting MPO/MTP module with adaptor plate reduces amount of interconnections and improves power budget and network economics.Learn More
- FirstLight Ultra High Density MPO/MTP (24 Fibre Ferrule) Module
FirstLight Ultra High Density 24 fibres Module with single rear MPO/MTP port provide an interface between 24xfibres ferrules MPO/MTP Trunks or Patchleads and LC interface of active equipment.
24xFibres MPO/MTP Interface assure compatibility of currently installed cabling with potential Next Generation MPO/MTP infrastructure for 40/100G application based on 24fibres MPO/MTP interface.Learn More
- FirstLight Ultra High Density 2U Rear Cable Management
- FirstLight 2U Ultra High Density (FL UHD) Chassis
FirstLight 2U Ultra High Density (FL UHD) Chassis is the part of the system for high density fibre optics infrastructure management in Data Centers, Telecommunication and Enterprise network environment. 2U chassis can house up to 12 x FL UHD Modules- design allows to scale up to 288x LC ports and 2304 fibres using MPO/ MTP Interface.Learn More
- FirstLight 1U Ultra High Density (FL UHD) Chassis
FirstLight 1U Ultra High Density (FL UHD) Chassis is the part of the system for high density fibre optics infrastructure management in Data Centres, Telecommunication and Enterprise environment. 1U chassis can house up to 5 x FL UHD Modules- design allows to scale up to 120x LC ports and 960 fibres using MPO/ MTP Interface.Learn More

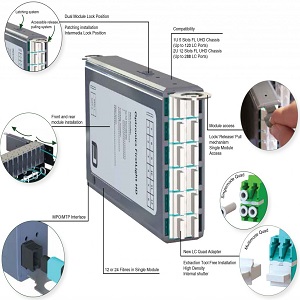

- FirstLight Ultra High Density (UHD) MPO/MTP Module
FirstLight Ultra High Density Modules provides an interface between MPO/MTP Trunks and LC interface of active equipment. Pre-assembled MPO/MTP modules improve the speed of installation. Modules with external MPO/MTP ports can be easily connected to trunks or fanouts. Single MPO/MTP port connection provides instant mating for 12 fibres at one time.Learn More
