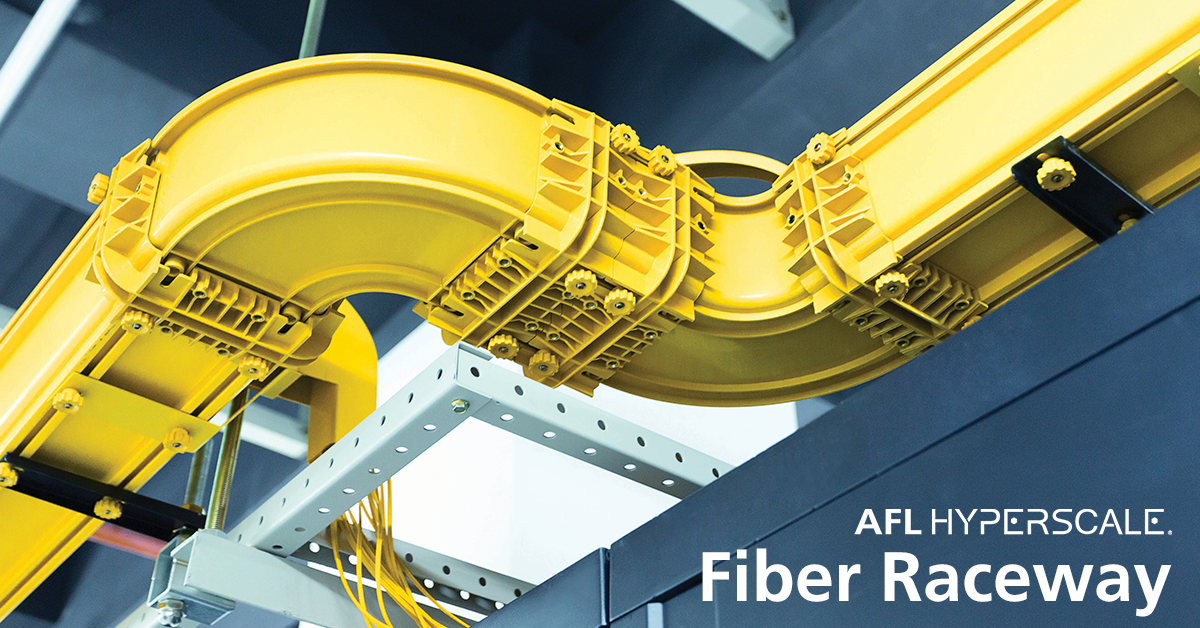

AFL Fiber Raceway

Fiber Raceway is designed to support and provide perfect routes for fibre network cabling. It is designed as a tool less construction for ease of installation. Fiber Raceway is robust, yet flexible with a number of components to complement the most demanding designs for significant amounts of network fiber connectivity. A range of sizes are available to meet all needs and designs, the bright yellow colour structure makes it easy to identify routes within the most complex of environments.
- Fiber Raceway Trapeze Hanger kit
Fiber Raceway Trapeze Hanger kit
Supports fiber raceway from the ceiling or from the C channel bar.
See data sheet download for more information - click picture above
Learn More - Straight Fiber Raceway
Straight Fiber Raceway
Used to carry the cables horizontally throughout the system. Accepts cover and fittings.
See data sheet download for more information - click picture above
Learn More - 45° Down Elbow Fiber Raceway
45° Down Elbow Fiber Raceway
Attaches to 4"x15", 4"x10", 4"x5", or 2.36"x2.36" channel and/or fitting to create a 45° downward angle from a straight horizontal run.
See data sheet download for more information - click picture above
Learn More - Vertical cutting in Tee Fiber Raceway
Vertical cutting in Tee Fiber Raceway
Attaches to 4"x10" or 4"x5" channel to create a 90° horizontal elbow from anywhere on a straight horizontal run
See data sheet download for more information - click picture above
Learn More - Fibre Raceway Coupler
Fibre Raceway Coupler
Quickly joins two sections of channel and/or fittings. Tighten and release bolts by fingers, absolutely toolless.
See data sheet download for more information - click picture above
Learn More - Cross Fitting Fiber Raceway
Cross fitting Fiber Raceway
Attaches to 4" x 15", 4" x 10", or 2.36" x 2.36" channel and/or fittings to create a horizontal four way cross intersection.
See data sheet download for more information - click picture above
Learn More - Horizontal Elbow Fiber Raceway
Horizontal Elbow Fiber Raceway
Attaches to 4" x 15", 4" x 5" or 2.36" x 2.36" channel and/or fittings to create a 90 degree horizontal elbow from a straight horizontal run.
See data sheet download for more information - click picture above
Learn More - 45° Up Elbow Fiber Raceway
45° Up Elbow Fiber Raceway
Attached to 4"x15", 4" x 10",4" x5" or 2.36" x 2.36" chanel and/or fitting to create a 45 degree upward angle for a straight horizontal run.
See data sheet download for more information - click picture above
Learn More - Horizontal Tee Fiber Raceway
Horizontal Tee Fiber Raceway.
Attaches to 4" x 15", 4" x 10", 4"x 5" or 2.36" x 2.36" channel and/or fittings to create a 90 degree horizontal branch from a straight horizontal run.
See data sheet download for more information - click picture above
Learn More - Fiber Raceway Adaptor
Fiber Raceway Adaptor.
Fiber raceway system offers adapter fittings that attach to any 4"x15", fitting or channel to connect with any 4"x10" fitting or channel, or any 4"x10" to connect to any 4"x5" fitting or channel.
See data sheet download for more information - click picture above
Learn More - Downspout Kit Fiber Raceway
Downspout Kit Fiber Raceway.
Fiber raceway system offers downspout kits that assembly onto 4"x5", 4"x10", or 4"x15" channel, spilling over the side into a 90mm or 130mm movable exit with or without corrugated pipe.
See data sheet download for more information - click picture above
Learn More - End Cap Fiber Raceway
End Cap Fiber Racewa.
AFL Hyperscale fiber raceway system offers end caps that are used for closing off the open ends of a channel or fitting.
See data sheet download for more information - click picture above
Learn More - Fibre Raceway Cabinet Top Support Kit (Fixed & Adjustable)
Fibre Raceway Cabinet Top Support Kit (Fixed & Adjustable)
Fiber racewaysystem offers double-rod supporter kits that can be used to carry the cables horizontally throughout the system.
See data sheet download for more information - click picture above
Learn More - Fiber Raceway Ladder Rack Side Support Kit
Fiber Raceway Ladder Rack Side Support Kit.
Fiber raceway system offers L-shape hanger kits that are used to support the 4"x5" or 4"x10" system by spanning two existing threaded rod drops. Can be installed from above or below.
See data sheet download for more information - click picture above
