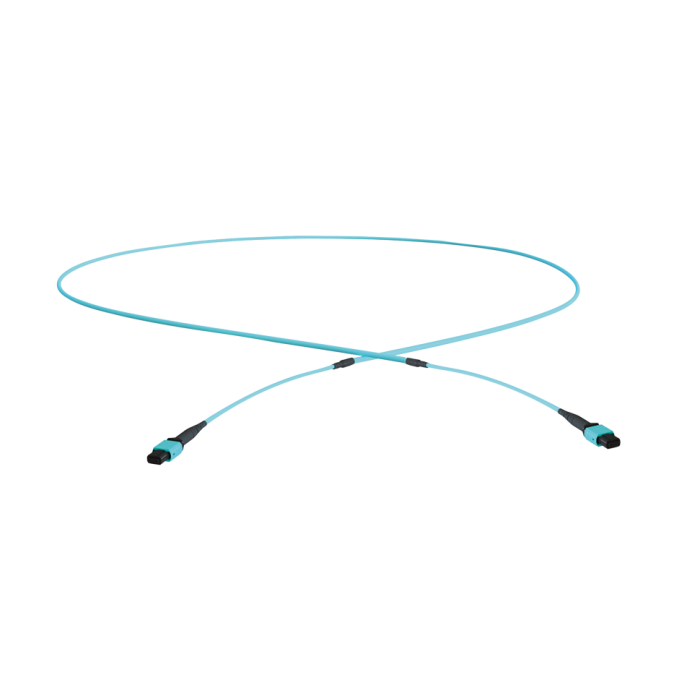

CXP/CFP 100G MPO Cable Assembly.

CXP/CFP 100G MPO/MTP  cable assemblies are designed to make a connection between 2 CFP/CXP transceivers. They are built using 24 fiber ferrule MPO/MTP® connectors with custom fiber mapping polarity to provide connection between 100GBASE-SR10 CFP/CXP devices.

When used with transition modules/cables, CXP/CFP 100G MPO/MTP  assemblies can be used within traditional 10G as well as parallel optics 40G networks, guaranteeing future proofing and full interoperability with potential future 100G infrastructures.

Assemblies are offered in 2 standard variants with Trunks using a double jacket 4.5mm OD MicroCable structure and also as a patch lead using single jacket 3mm OD MicroCable structure. Small and compact MicroCable is ideal for high density data center application. Indoor/outdoor grade of assemblies are available with traditional loose tube INT/EXT cable.

MPO/MTP  multifiber interface facilitates rapid deployment of high density backbone cabling in data centers and other high fiber environments reducing network installation or reconfiguration time and cost.

Features/Benefits:

  • OS1/2, OM3, OM4
  • 24 Cores MicroCable Trunks (Double Jacket 4.5mm OD)
  • Patchleads (Single Jacket 3mm OD MicroCable) available on special requests
  • LSZH, OFNR, OFNP cable jackets
  • Female/Un-Pinned and Male/ Pinned MPO/MTP® connectors
  • Designed for CFP/CXP 100GBASE-SR10 transceivers infrastructure
  • Universal INT/EXT Loose Tube
  • High Quality- Factory terminated and tested
  • Next Generation Network Proof - 40/100GParallel Optics compatible.
  • MPO/MTP® Interface - MPO/MTP  components feature superior optical and mechanical properties.
  • Optimised Performance - low loss MPO/MTP  and OM4 fiber assures low insertion losses and power penalties in tight power budget high speed network environment.
  • High Density - Multifiber connector and compact dimension of ruggedized Microcable improves space management in costly data center environments.
  • Rapid Deployment - Factory terminated system saves installation and reconfiguration time during moves, ads and changes.
  • Reliability - 100% tested Combination of high quality components and manufacturing quality control guarantees product to the highest standards.

Applications:

  • Data center infrastructure
  • Storage Area Network- Fiber Channel
  • Parallel Optics:40Gps and 100Gbps Protocols
  • Infiniband

See PDF Download for More Information.
