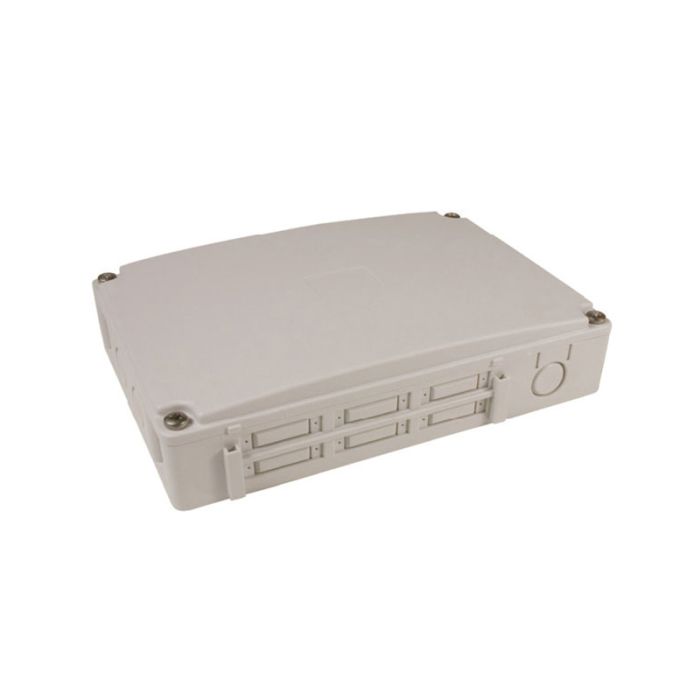

The termination box is designed for use on the external wall of residential or small business premises. The unit houses a single splice tray and allows fibers from externally fed cables (Blown Fiber or conventional), to be spliced to pigtails for connection to the optical network unit. Pigtail fibers or patch cords are routed through the external wall fabric via a rear entry/exit position and are protected by 25mm diameter conduit. The unit can also be used as a transition point between internal and external cable.
The termination box is designed for use on the external wall of residential or small business premises. The unit houses a single splice tray and allows fibers from externally fed cables (Blown Fiber or conventional), to be spliced to pigtails for connection to the optical network unit. Pigtail fibers or patch cords are routed through the external wall fabric via a rear entry/exit position and are protected by 25mm diameter conduit. The unit can also be used as a transition point between internal and external cable.
Features/Benefits:
Tamperproof cover security screws available as an option (refer to optional items)
Rear cable entry/exit position allows pigtails or patchcords to enter the customer premise
Compact wall mounted unit typically used for residential and small business premises
Standard kit supplied complete with all components necessary to splice an external cable to four pigtails. For applications where 12 fibers are to be spliced (external to internal cable), extra splice protectors will be required
Cable interstices can be sealed against water/gas ingress at the entry/exit position if required using a quick set resin
All fibers are positively managed to 30mm minimum bend radius
Cable up to 13mm in diameter can be accommodated with a cable gland
Removable cover fitted with re-enterable seal. Water ingress protection to IP55
